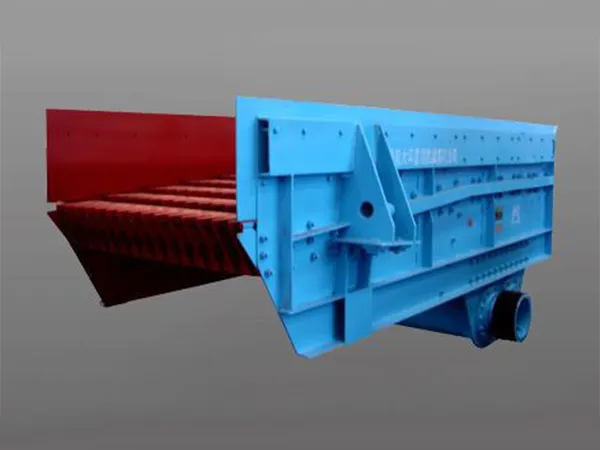

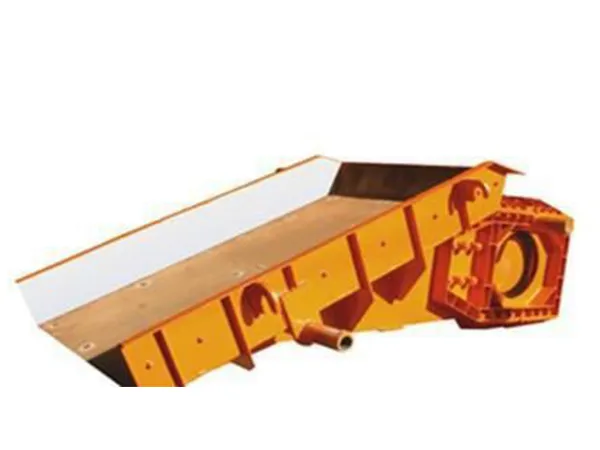

Vibrating Feeder
<< 1 2 >>
Vibrating Feeders Components
  • 01Vibration Mechanism

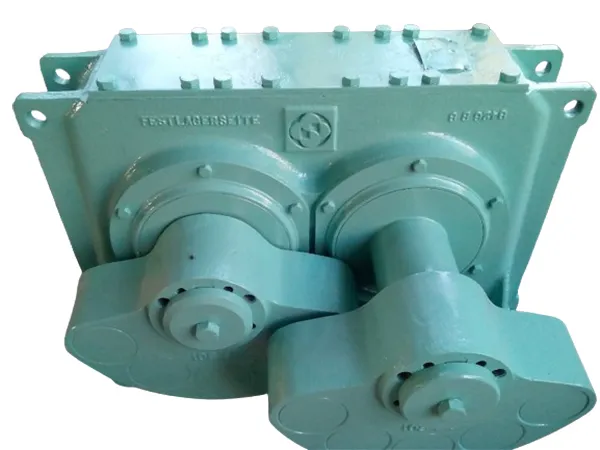

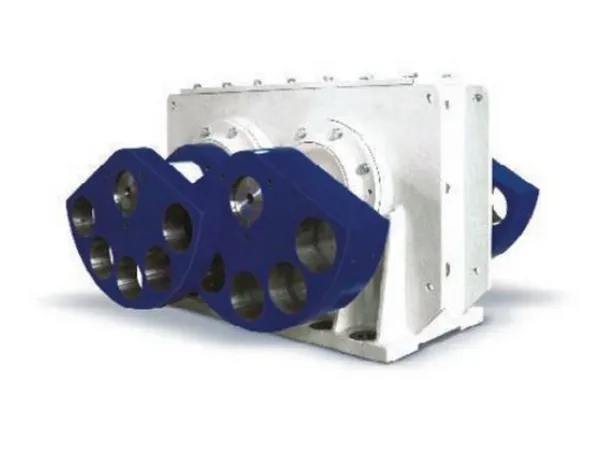

    Vibrating feeders use a vibration mechanism to move materials. This mechanism is typically powered by an electric motor with an eccentric weight attached to the motor's shaft. The rotation of the eccentric weight generates vibration in a specific direction, causing the feeder to vibrate.

  • 02Feeder Tray Or Trough

    The material is contained in a tray or trough that vibrates along with the feeder. The tray or trough is typically made of durable materials to withstand the impact of the materials being conveyed.

  • 03Drive Unit

    The drive unit consists of the motor and the associated components that generate the vibration. It can be either electromagnetic (using an electromagnetic coil) or mechanical (using an eccentric weight on a rotating shaft).

  • 04Control System

    Vibrating feeders often have a control system to regulate the flow of material. The control system can be manual or automated, allowing for adjustments to the vibration intensity and frequency.

  • 05Support Structure

    The vibrating feeder is typically mounted on a support structure to ensure stability during operation.

  • 06Benefits

    Consistent and controlled material flow. Reduced wear and tear on downstream equipment. Efficient handling of various types of materials, including abrasive or sticky substances.

Vibrating Feeder Working Principle
  • Vibrating Drive Or Source Of Vibration

    The vibrating feeder is equipped with a vibrating drive that generates vibrations with a specific amplitude and frequency. This drive can be an electromagnetic coil, a motor with unbalanced weights, or another source of vibration.

  • Vibrating Tray Or Trough

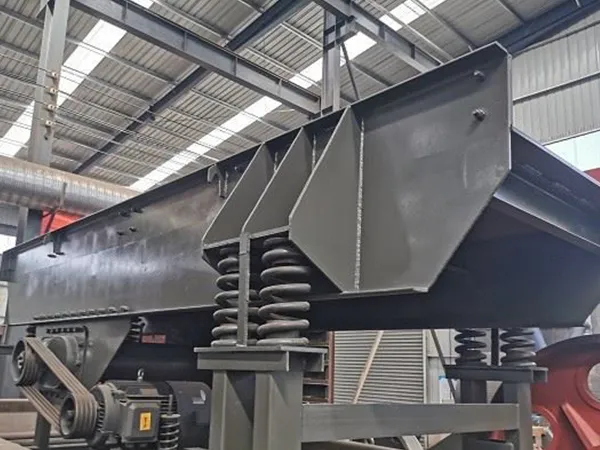

    The bulk material to be conveyed is placed on a tray or trough that is attached to the vibrating drive. The tray is typically supported by springs or other damping elements to allow for controlled movement.

  • Vibration Transmission

    The vibration generated by the drive is transmitted to the tray or trough, causing it to vibrate. The vibrations move the material along the tray in a controlled manner.

  • Material Flow

    As the tray vibrates, the bulk material is propelled forward in a series of small jumps or motions. The amplitude and frequency of the vibrations are carefully controlled to ensure a smooth and consistent material flow.

  • Adjustable Parameters

    Vibrating feeders often have adjustable parameters such as amplitude and frequency to accommodate different types of materials and control the feed rate. These adjustments allow for customization based on the specific requirements of the application.

  • Controlling Mechanism

    The vibrating feeder may include a control system that allows operators to adjust the parameters and monitor the performance of the feeder. Sensors may be used to provide feedback on the material level in the feeder tray or other relevant parameters.

  • Application In Various Industries

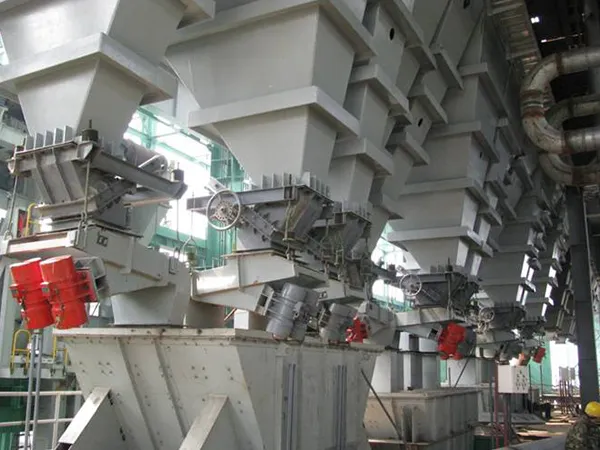

    Vibrating feeders find applications in a variety of industries, including mining, construction, chemical, and manufacturing. They are used to feed materials into crushers, screens, or other processing equipment in a controlled and efficient manner.
