How does a vibrating feeder work?

time:May 11, 2024 source:ZEXCIT

A vibrating feeder is a device used to transport materials along a production line or into processing machinery. Its primary function is to move materials in a controlled manner, ensuring a steady flow of material to downstream processes. The working principle of a vibrating feeder involves the following key components and processes.

Vibrating feeder working principle

vibrating feeder

Vibrating Drive: The vibrating feeder is equipped with an electric motor or electromagnetic drive system that generates vibrations. These vibrations cause the feeder's trough or tray to oscillate back and forth in a linear motion.

Trough or Tray: The material to be conveyed is placed on the feeder's trough or tray. This trough or tray is typically made of metal or other sturdy materials and is designed to withstand the weight and impact of the materials being transported.

Springs or Rubber Mounts: The trough or tray is mounted on springs or rubber mounts, which absorb the vibrations generated by the vibrating drive. This helps to isolate the vibrations from the surrounding environment and prevents excessive vibration from affecting other equipment or structures.

Excitation Frequency: The frequency of the vibrations generated by the vibrating drive can be adjusted to control the flow rate of material through the feeder. Higher frequencies result in faster material flow, while lower frequencies result in slower material flow.

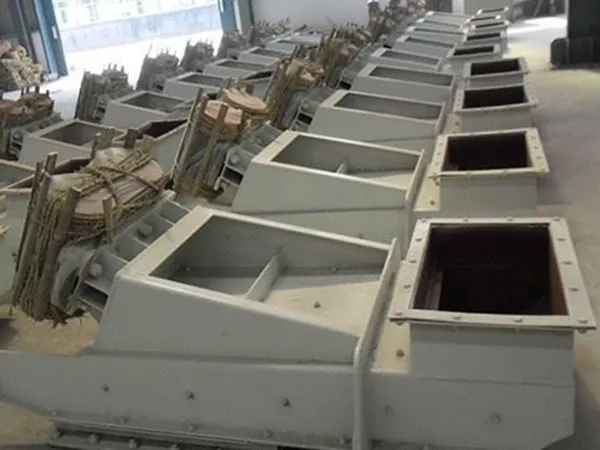

vibrating feeder

Material Flow Control: The amplitude and frequency of the vibrations can also be adjusted to control the flow of material through the feeder. By varying these parameters, operators can ensure a steady and uniform flow of material, preventing overfeeding or underfeeding of downstream processes.

Control System: Modern vibrating feeders are typically equipped with electronic control systems that allow operators to adjust the settings of the feeder remotely. These control systems may include features such as variable speed control, feed rate adjustment, and automatic shutdown in case of malfunctions.

In summary, the working principle of a vibrating feeder involves the generation of controlled vibrations that cause the feeder's trough or tray to oscillate back and forth, thereby transporting materials along a production line or into processing machinery in a controlled manner.
